Reverse Proxy Installation

---

Certificate

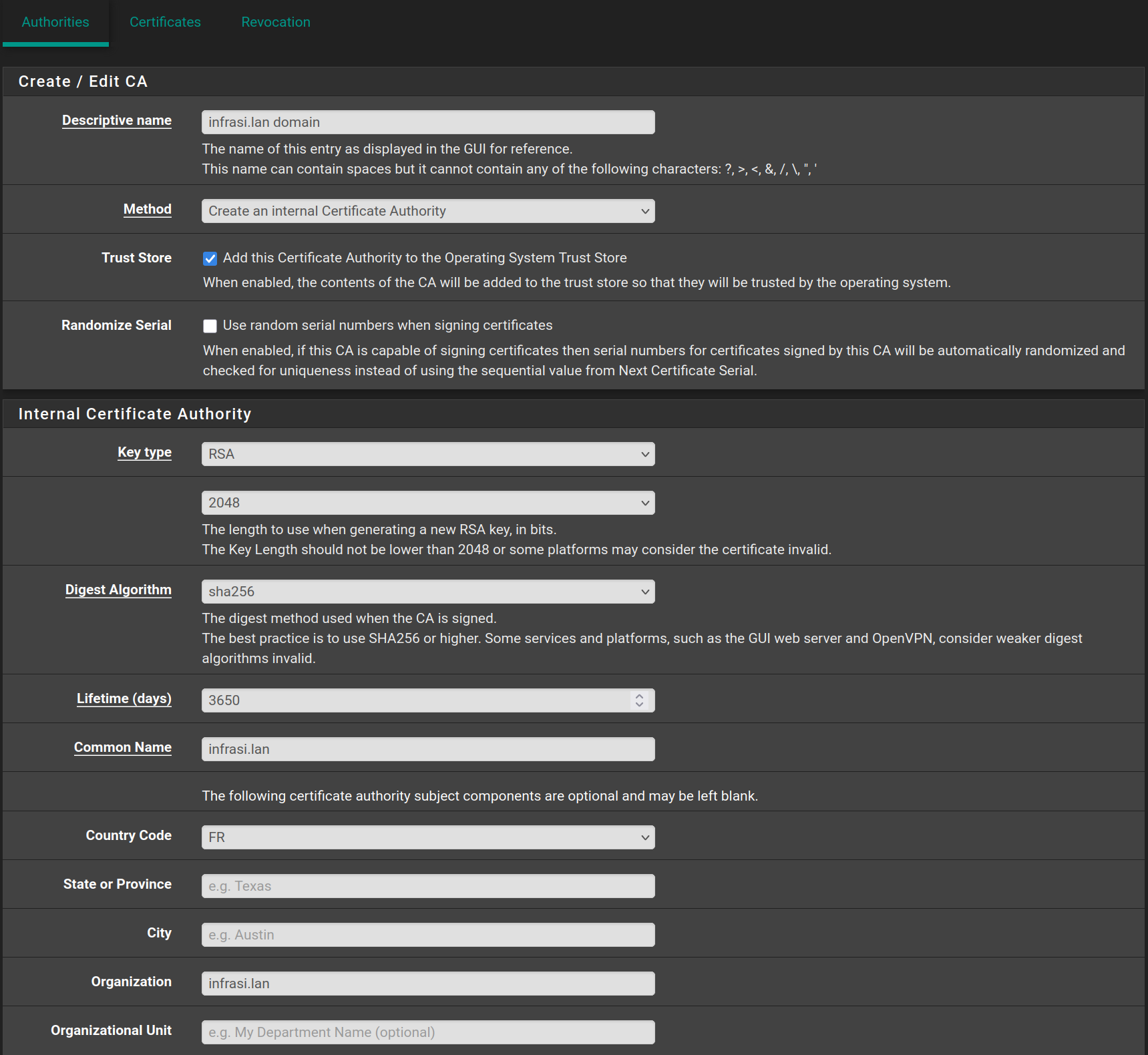

In the pfSense web configurator, go to System > Certificates > Authorities and click on Add, then fill it with the following values and click on Save

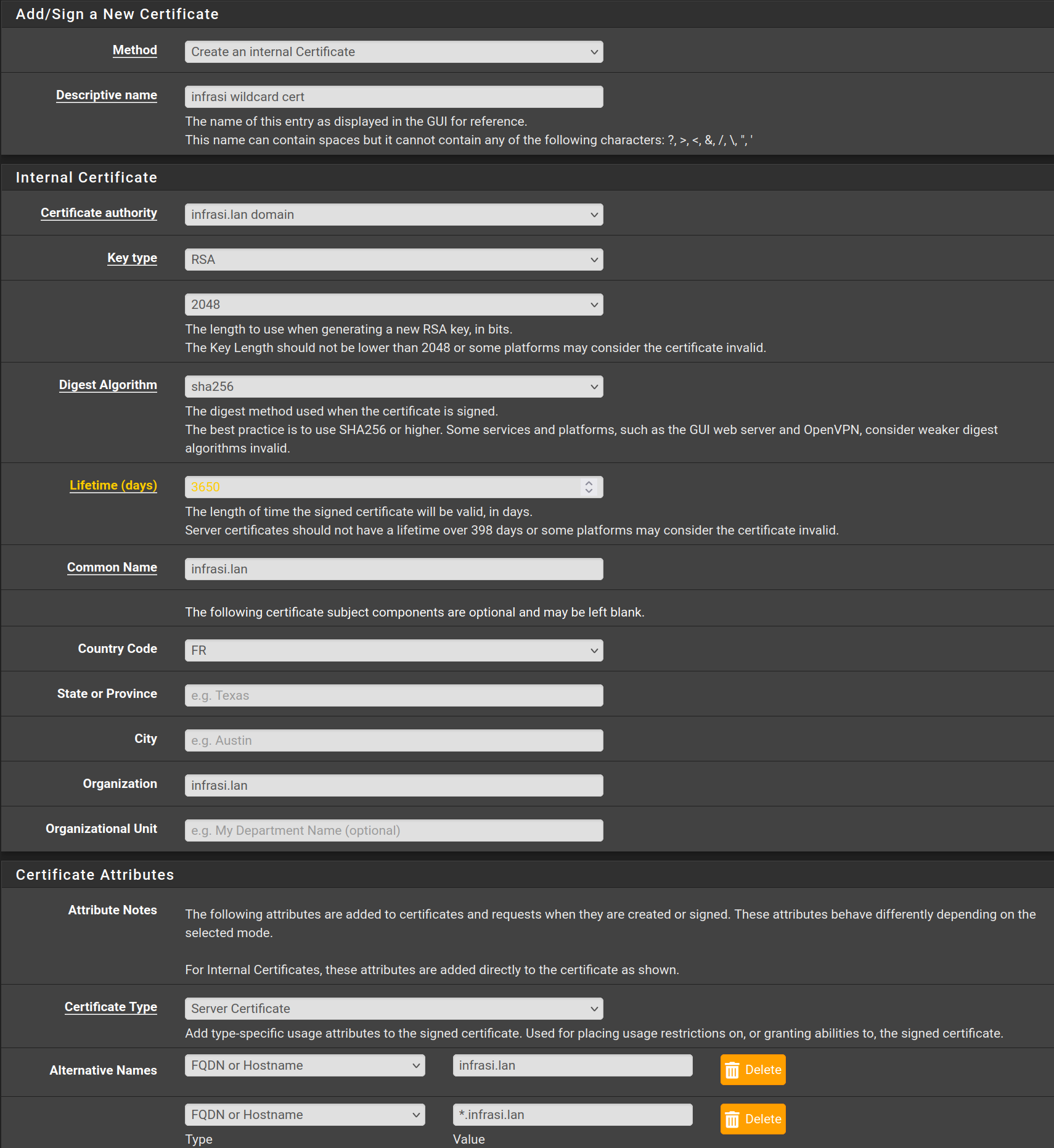

Then go to Certificates and click on Add/Sign then fill the form with the following values and click on Save

---

HAProxy

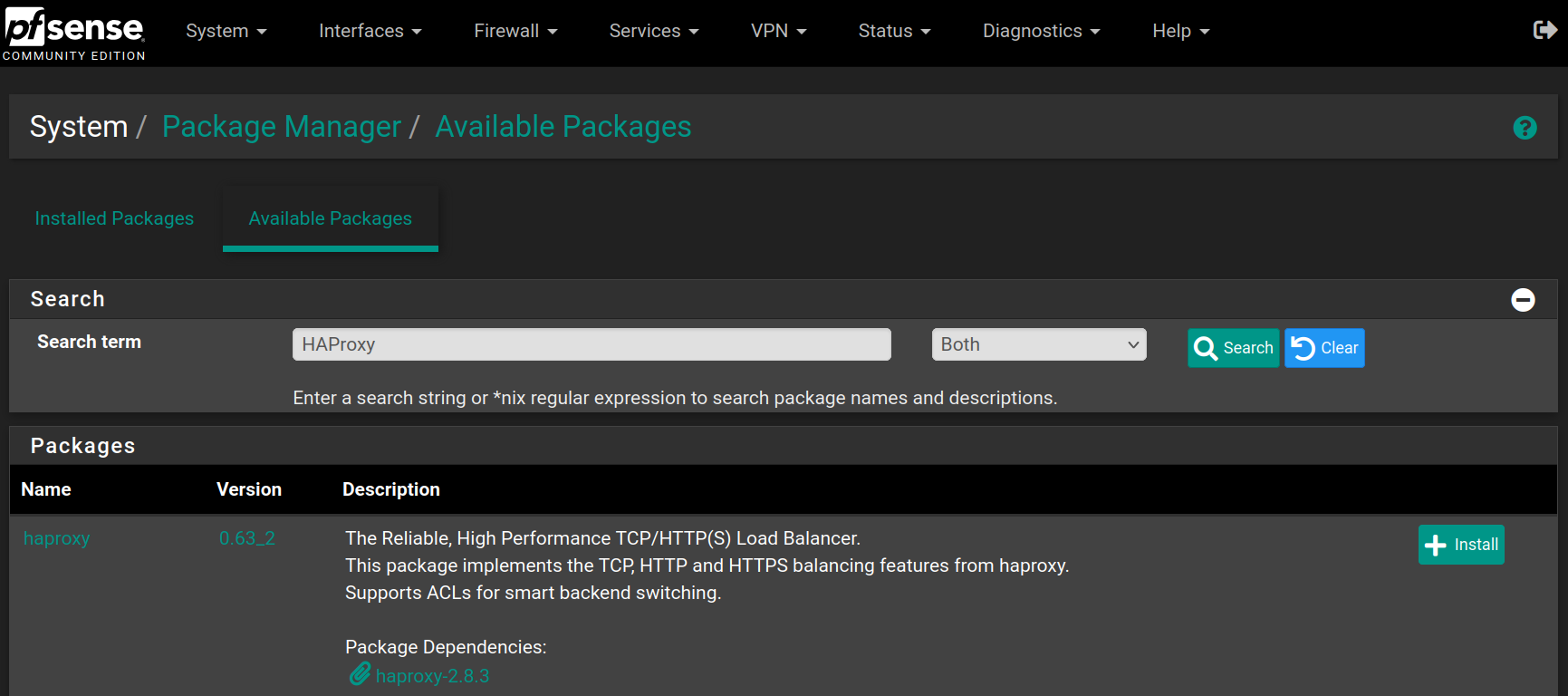

Go to System > Package Manager > Available Packages and search for HAProxy and click on Install

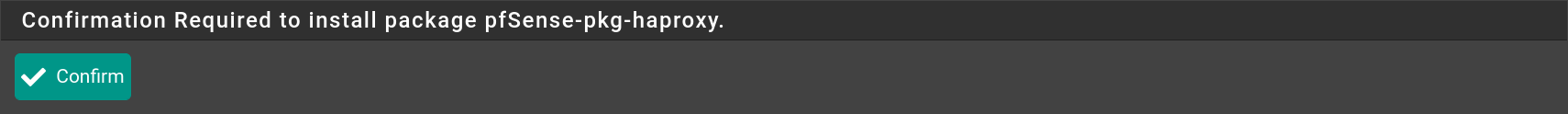

Click on Confirm to begin the installation

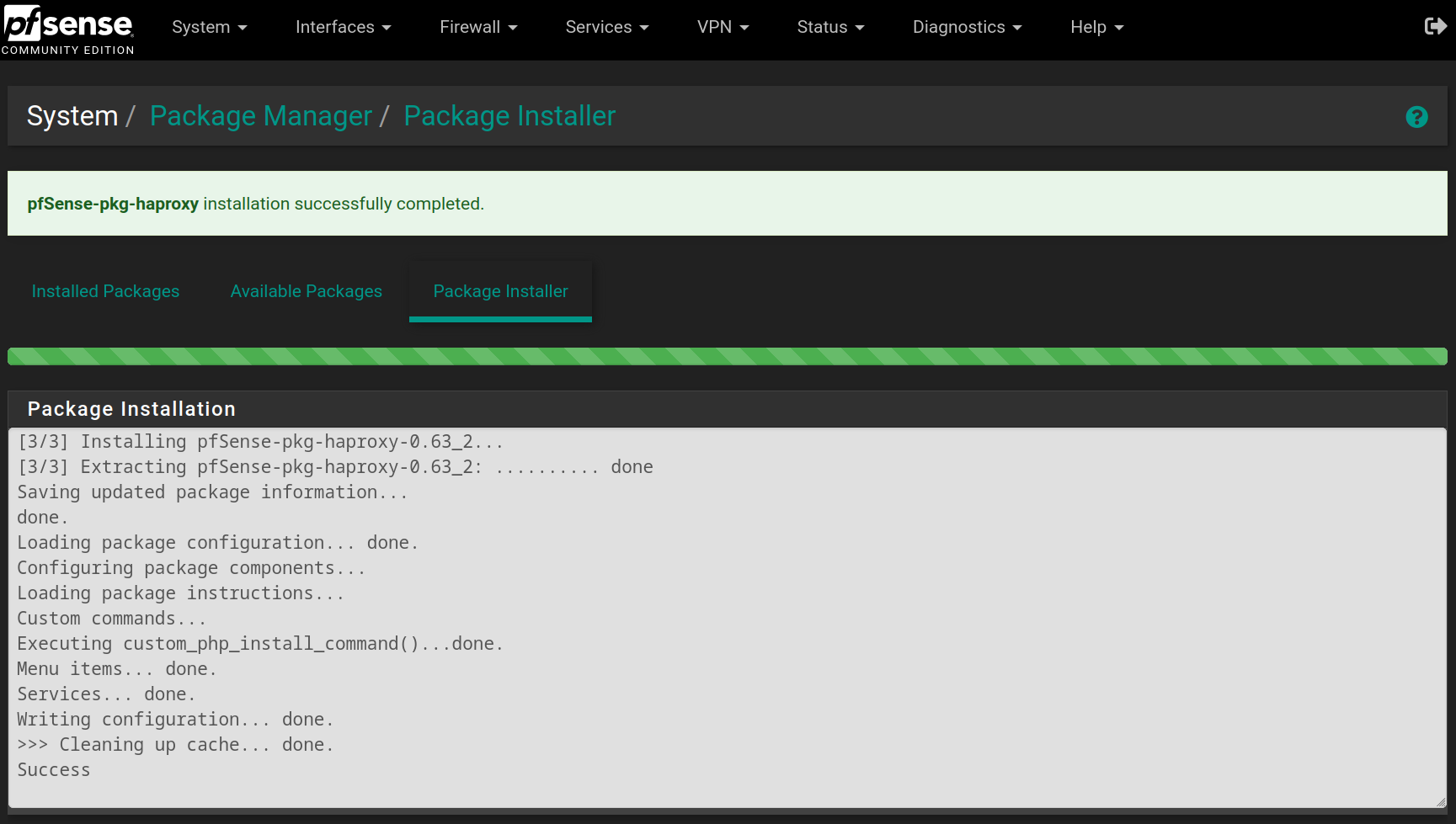

When the installation is complete, you will have the following result

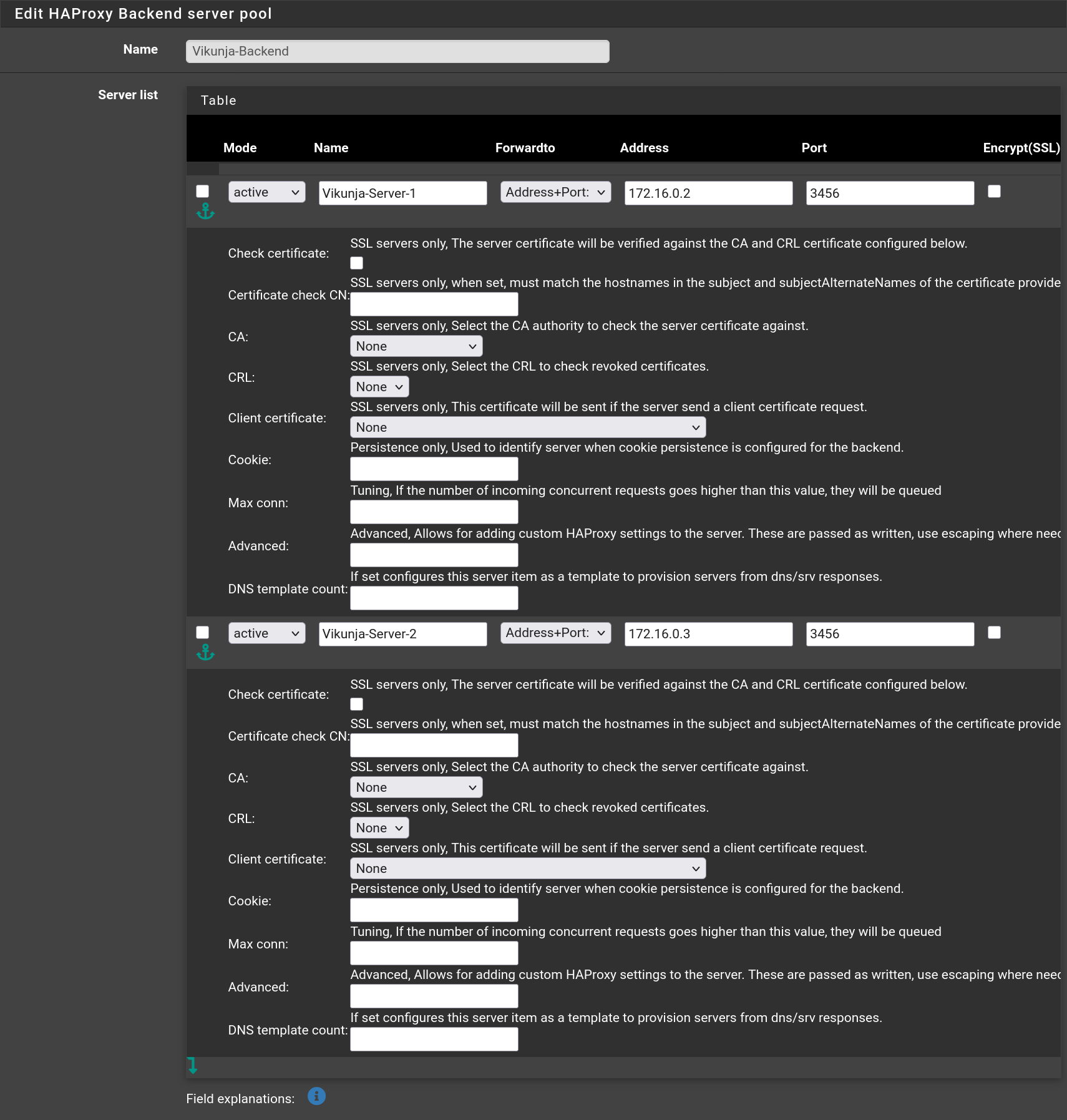

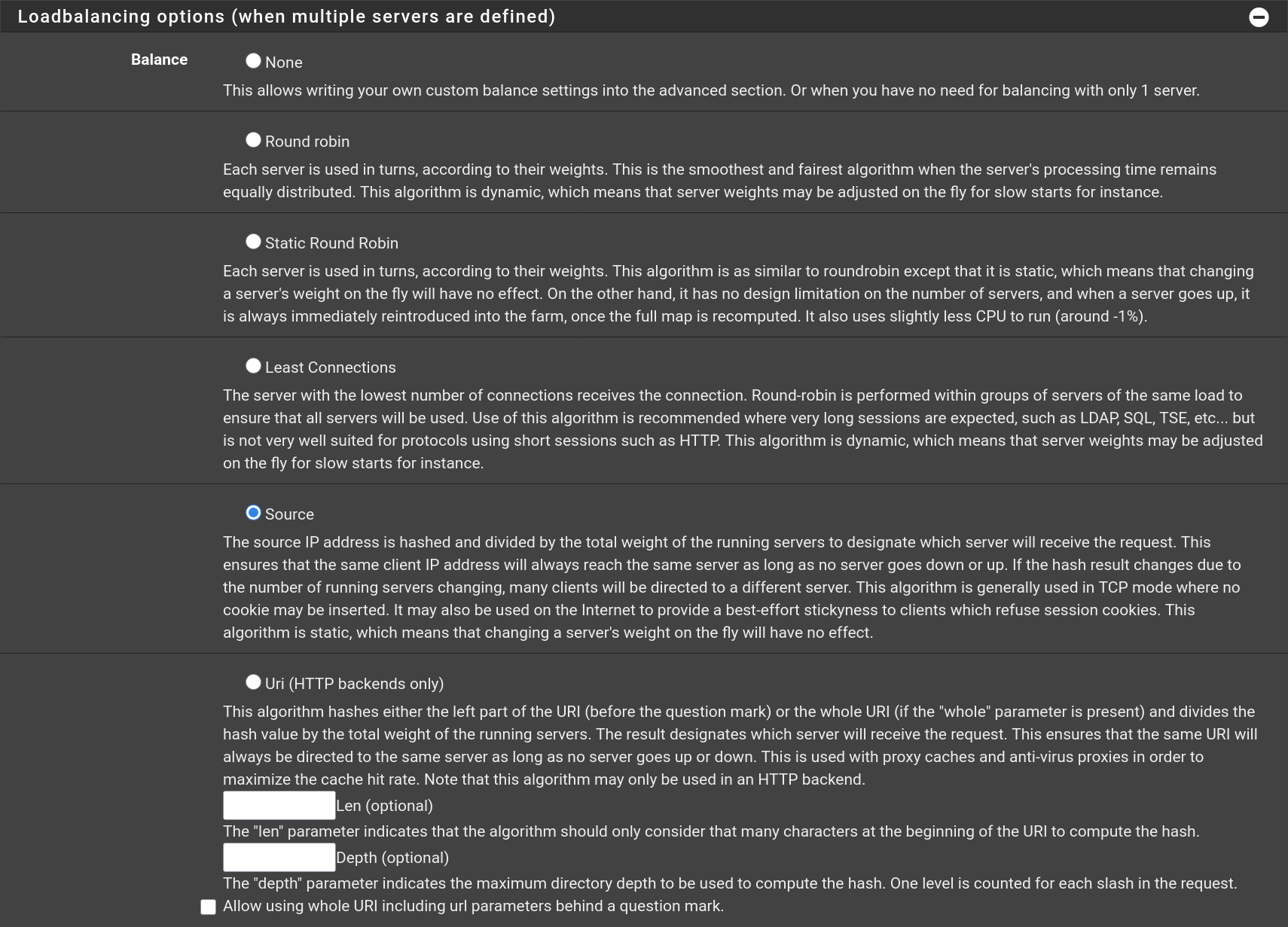

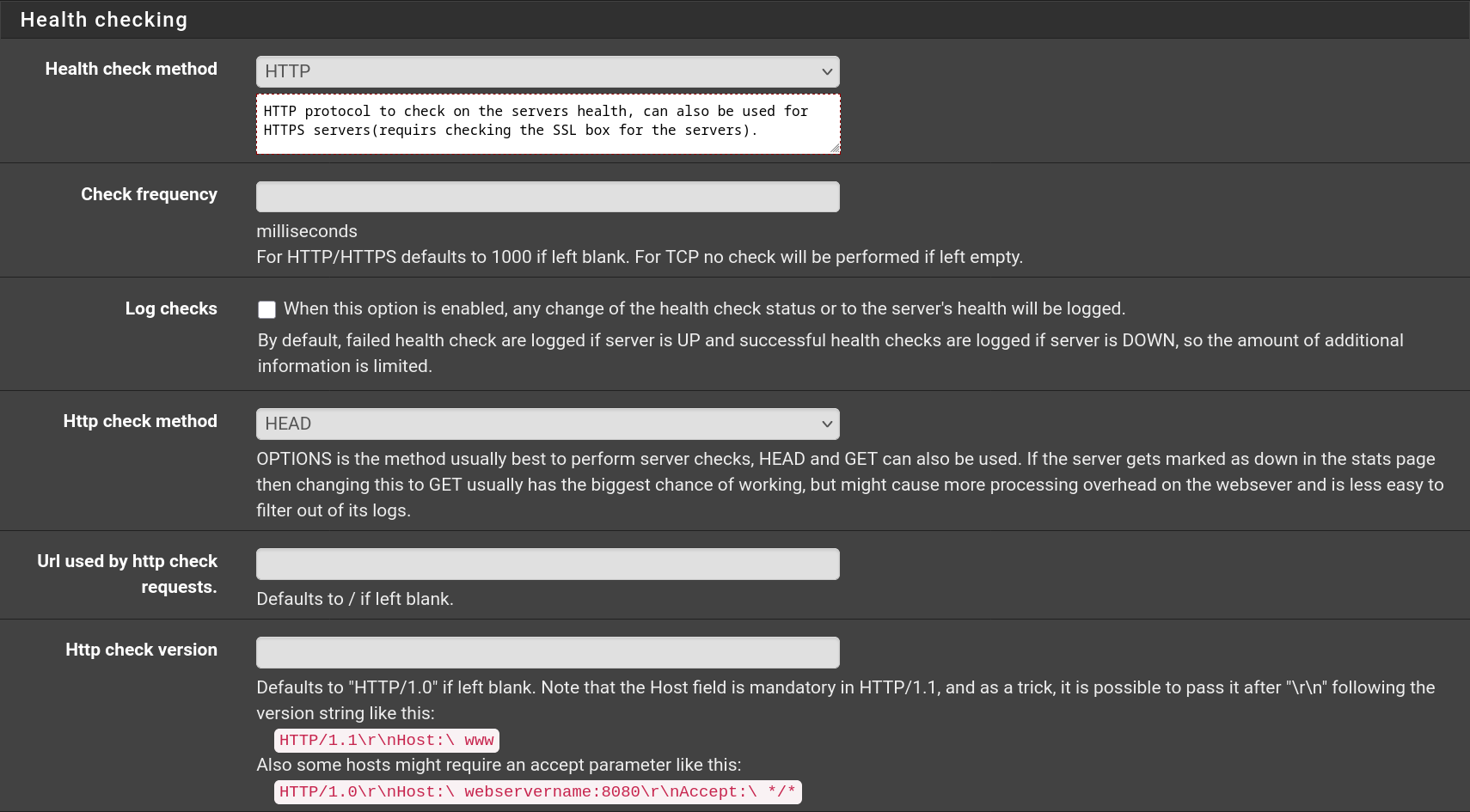

Go to Services > HAProxy > Backend and click on , then fill the form with the following values and click on Save

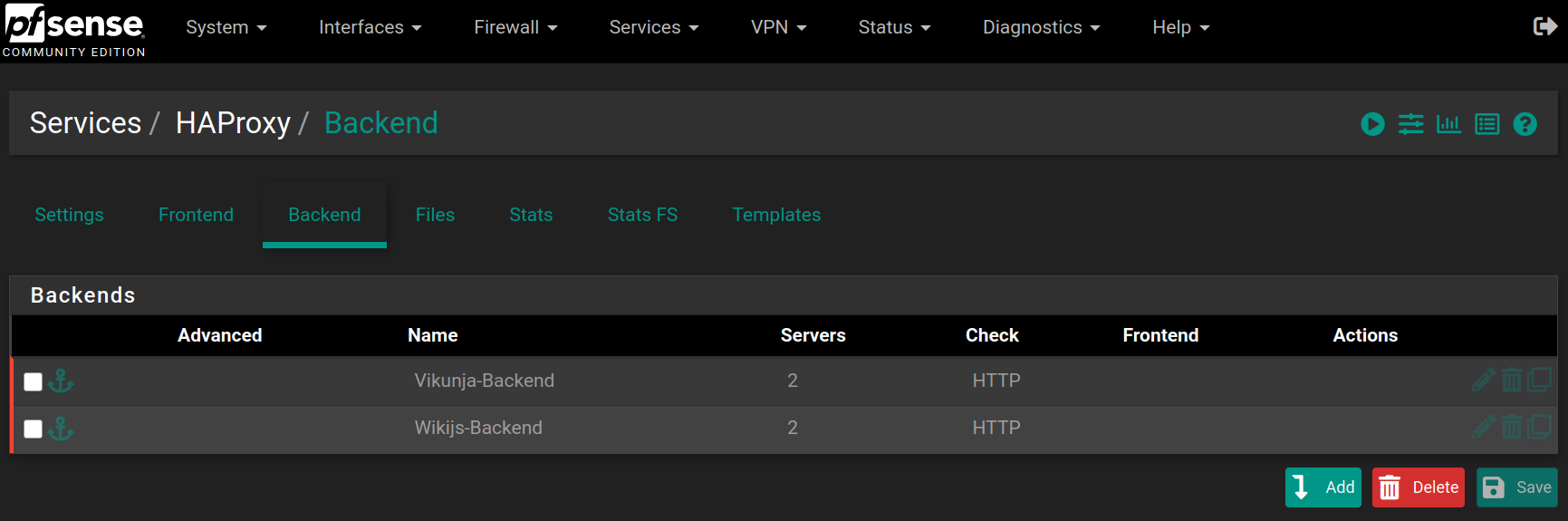

Do the same for Wiki.js with the port being 3000 instead of 3456.

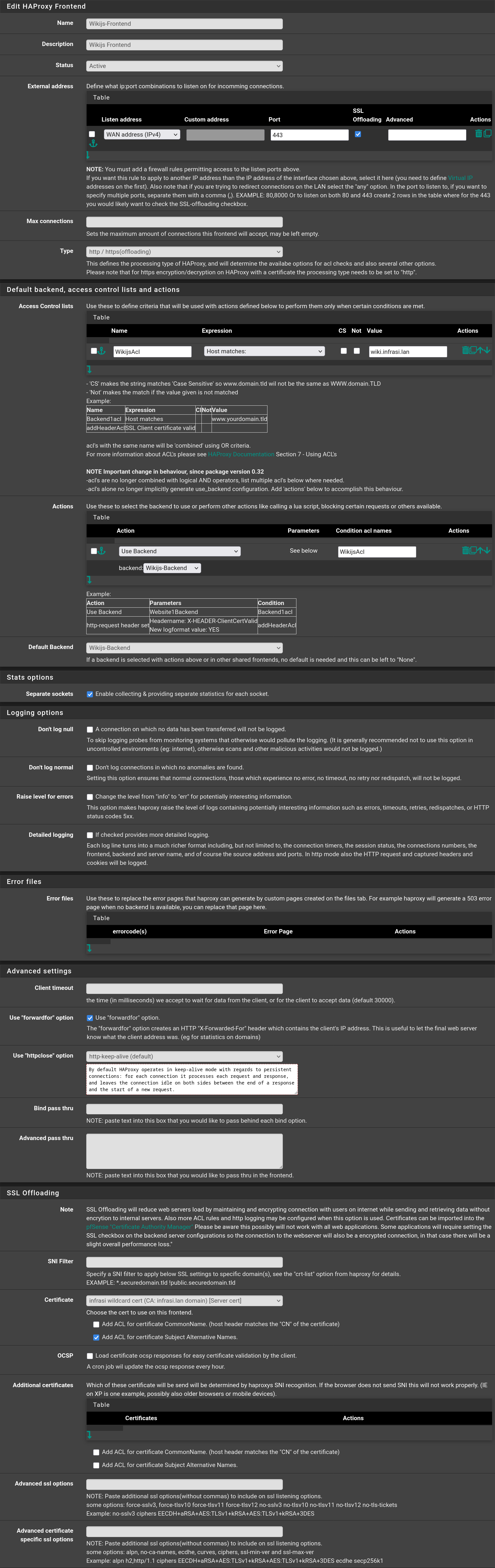

Then go to Frontend and click on , then fill the form with the following values and click on Save

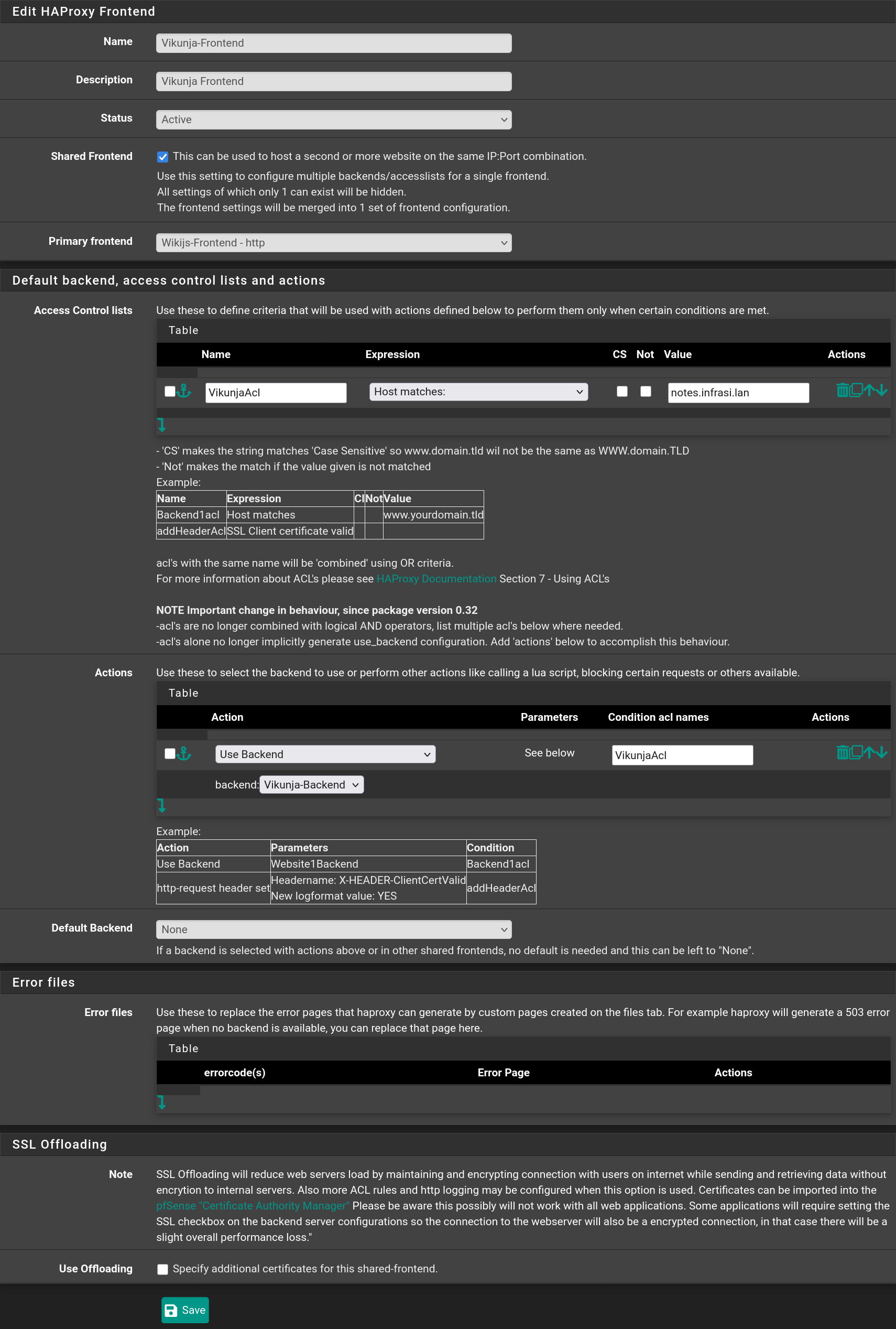

Repeat the process with Vikunja checking the option Shared Frontend selecting the Wikijs-Frontend and click on Save

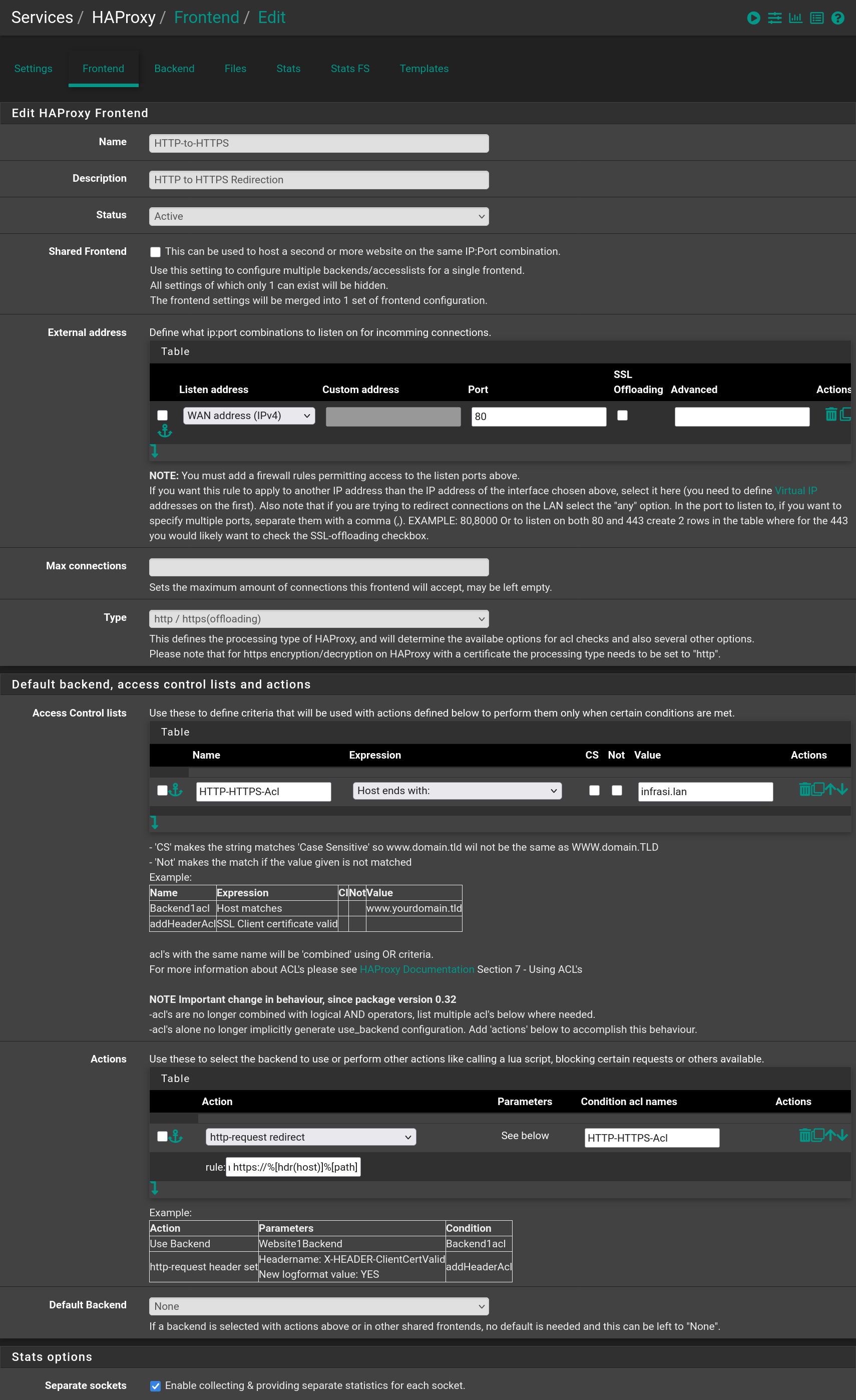

Then add a third frontend to redirect requests from HTTP to HTTPS when in the infrasi.lan domain

You should have the following frontends

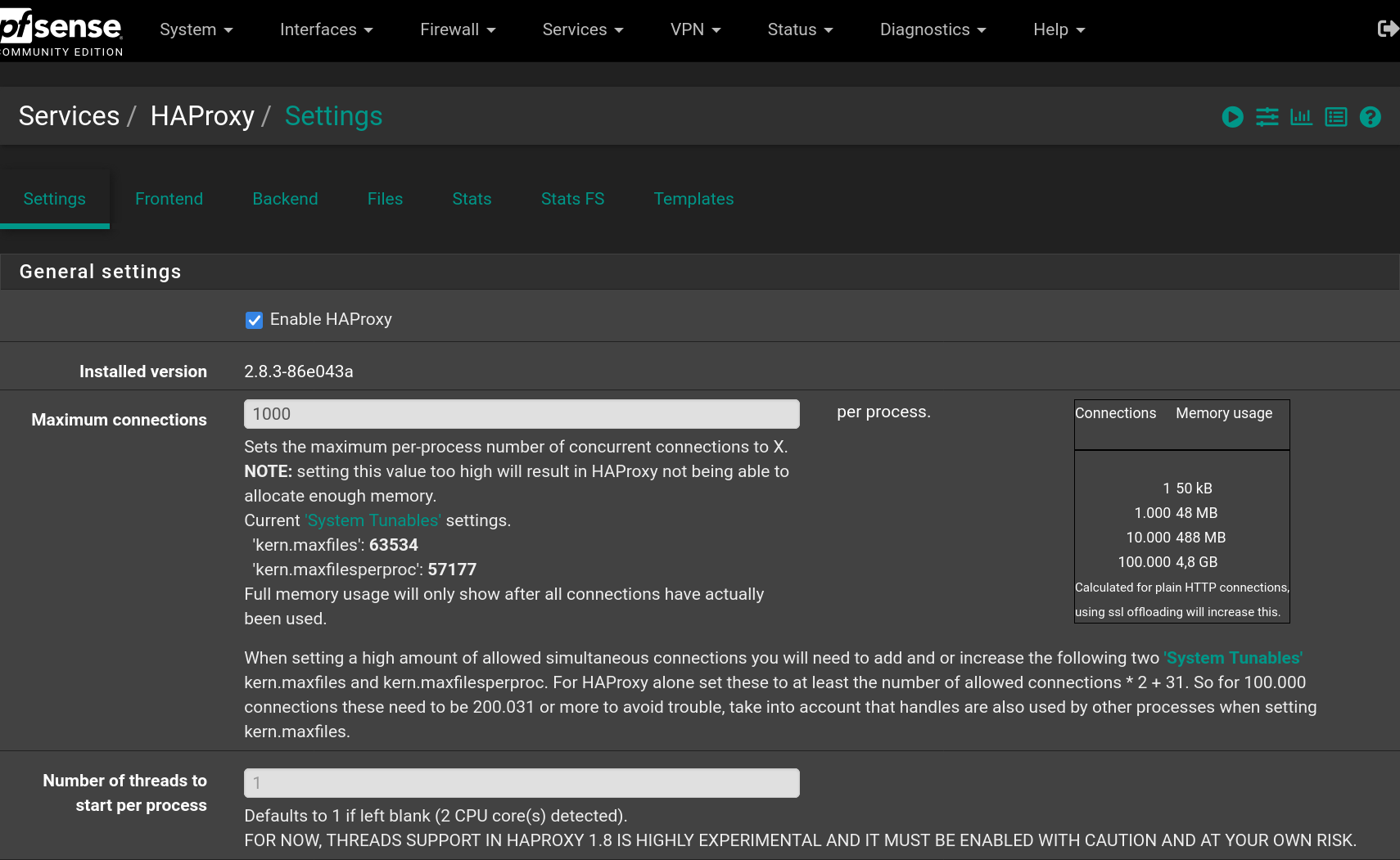

Go to Settings to enable HAProxy filling the form with the following values and click on Save

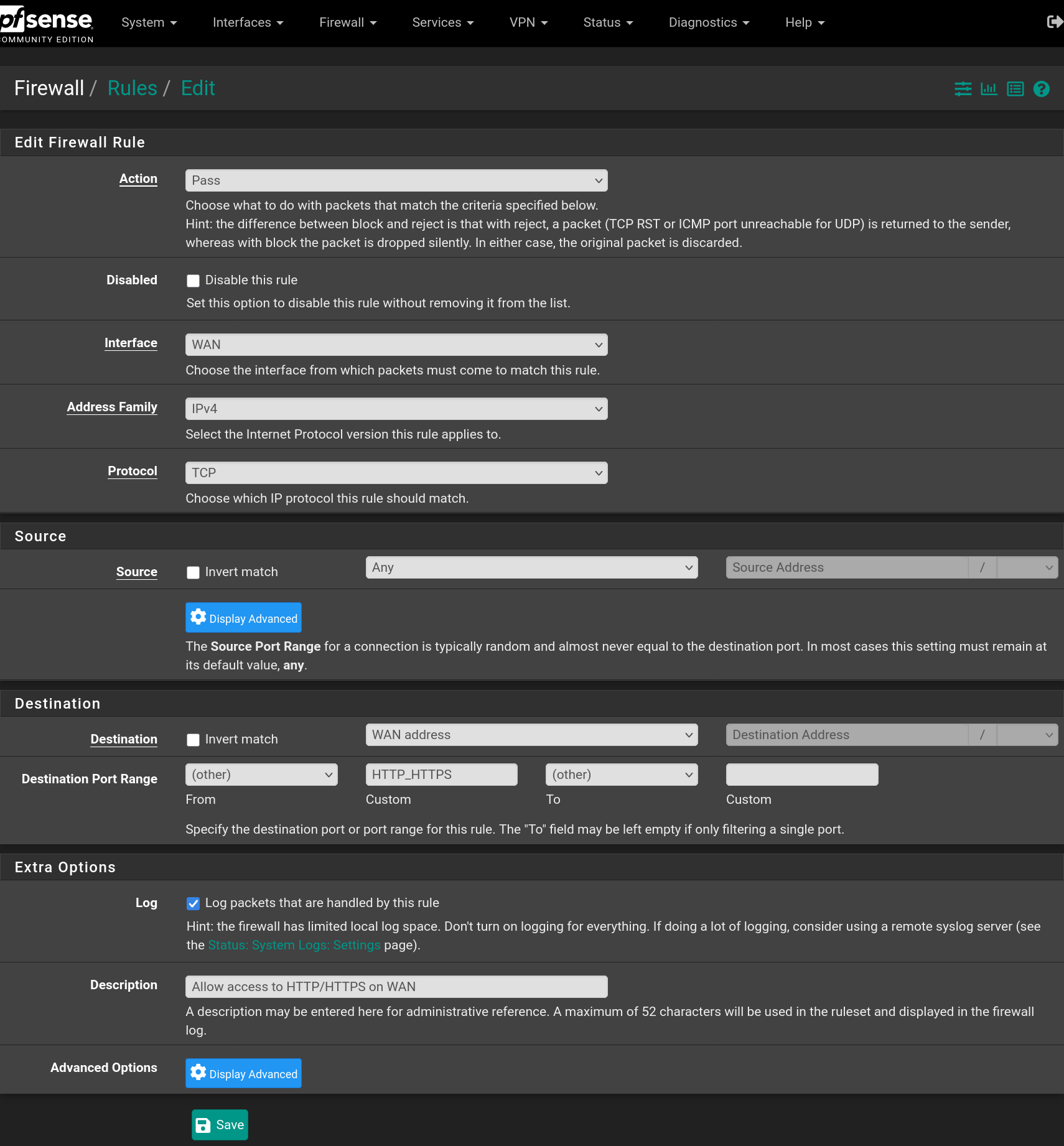

Go to Firewall > Rules > WAN and add a rule to accept IPv4 TCP requests on HTTP and HTTPS ports

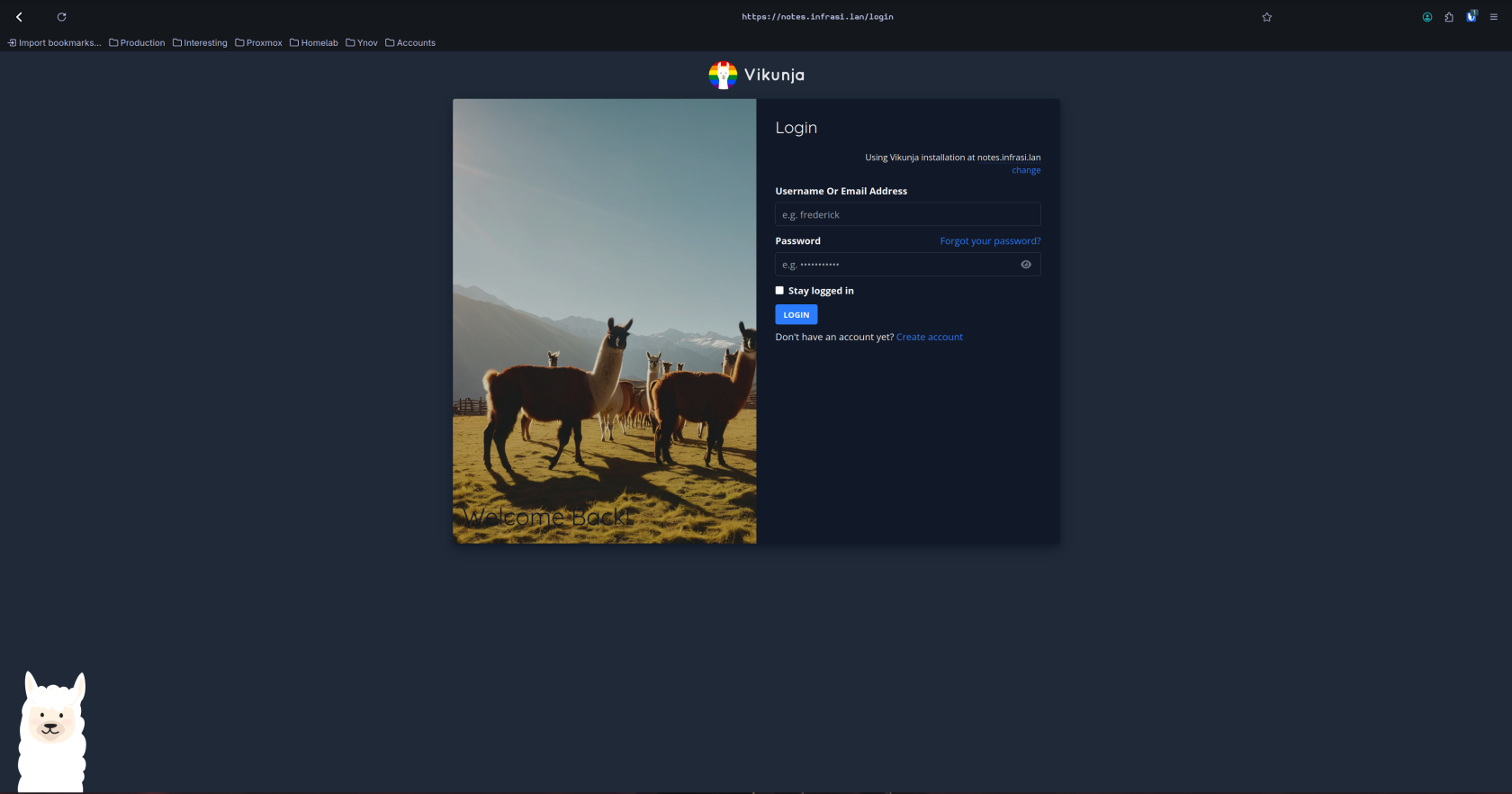

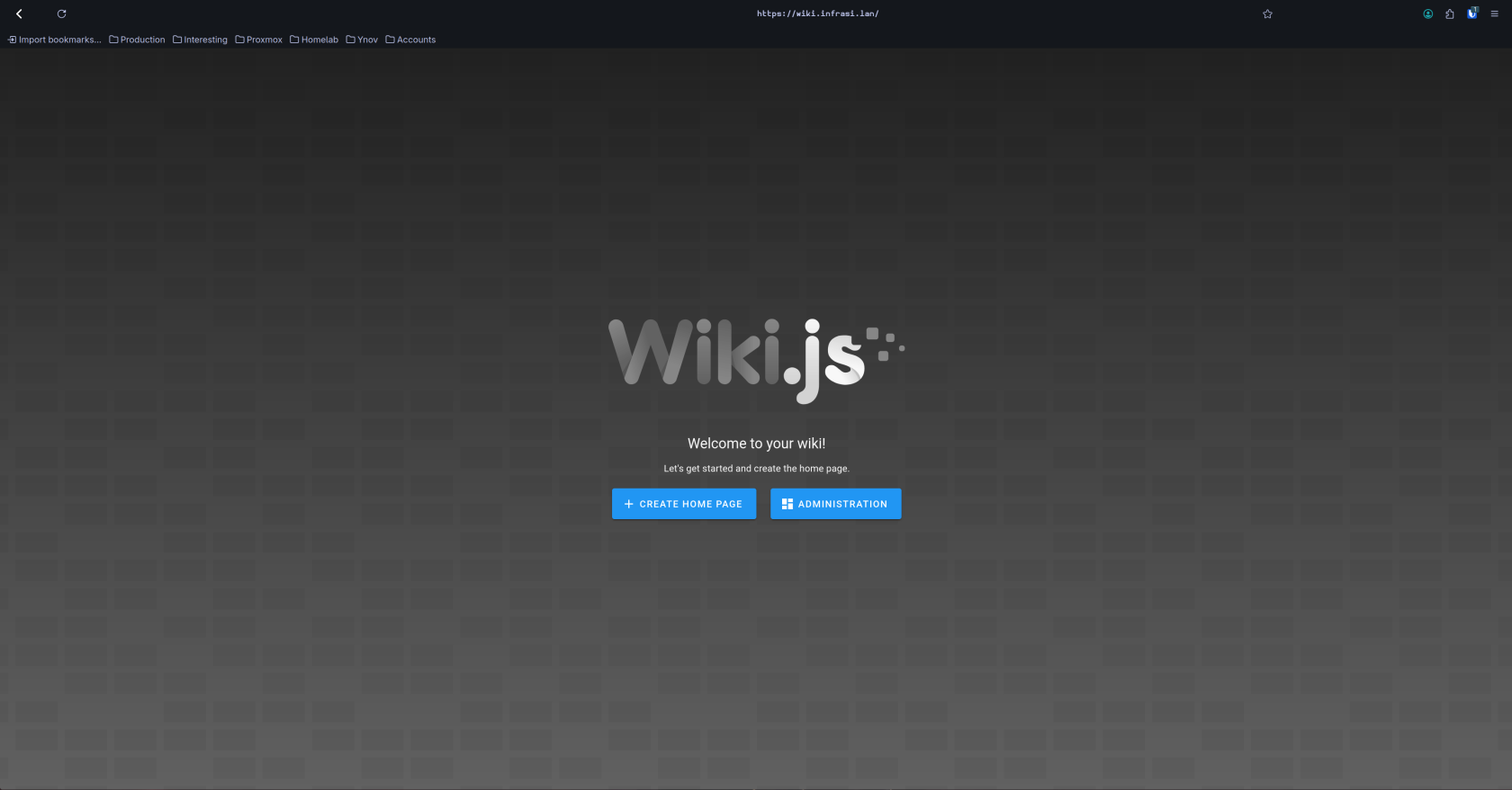

Now the websites are available from the outside using HTTPS and the domain name infrasi.lan

ⓘ You need to have DNS entries in the WAN network that points to your WAN address for the infrasi.lan domain and the notes.infrasi.lan and wiki.infrasi.lan sub-domains.
